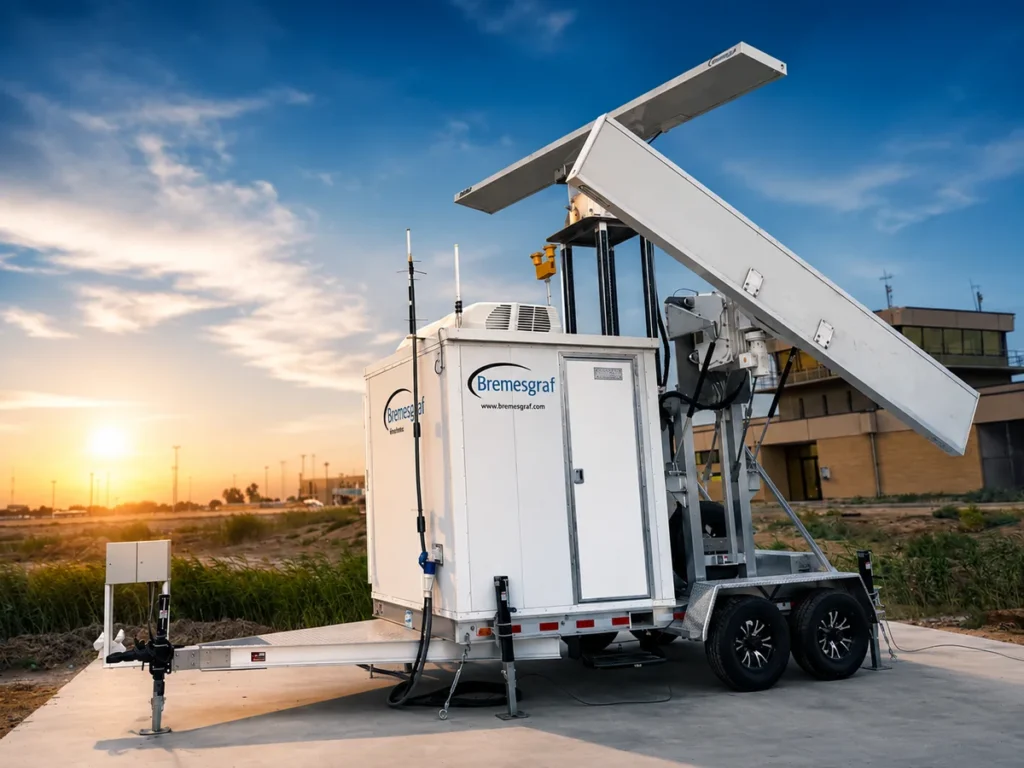

Aircraft Birdstrike Avoidance Radar (ABAR) is designed specifically for tactical real-time birdstrike prevention. The fully integrated system delivers real-time, high-resolution surveillance of avian activity to enhance safety and operational efficiency at airports and military airfields.
Full x-y-z tracking with altitude monitoring from the surface up to 18,000 ft.
Provides instant risk assessments and tactical alerts to support pilots and Air Traffic Control.
Specification
| Parameter | Specification |
| Radar Type | Solid-State, S-Band Pulsed Doppler |
| Frequency Range | 2.9 to 3.3 GHz, electronically variable |
| Power Output | 200-300 Watts |
| Range | 2-6 miles / 4+ NM |
| Altitude Coverage | Surface to 18,000 ft |
| Coverage | Full 360° Horizontal & Vertical - True 3D |
| Operating Temperature | -25°C to +60°C |
| Humidity | Up to 100% |
| Wind Tolerance | Up to 185 km/h / 51 m/s |
| Power Supply | 110/240 VAC, UPS backup, optional generator |
| Network Protocol | TCP/IP - Fiber, Wireless, Mobile access |
Standard functions
- Air Traffic Control
- Flight Operations
- Airport Wildlife Management
- Airport Security Teams
- Live 360° bird tracking
- Full 3D surveillance
- Altitude tracking up to 18,000 ft
- Real-time risk assessment
- Tactical alerts
- Bird mass and size filtering
- High-speed tracking updates
- Fixed and mobile configurations
