Hi-Energy Gantry Cargo & Vehicle Non-Intrusive Inspection System
The VXG-6 is a hi-energy gantry X-ray inspection system designed to verify the contents of cargo carrying vehicles, ISO containers, large cargo and palletized goods. It provides high-penetration imaging to help identify hidden contraband such as weapons, explosives and narcotics.
Feature highlights
- High penetration. Hi-energy X-ray technology provides 330 mm of steel penetration for effective inspection of vehicles, containers and large cargo.
- Full vehicle inspection. The VXG-6 is designed to scan the whole vehicle, including the driver’s cabin, providing comprehensive bumper-to-bumper inspection.
- High throughput. The system provides up to 25 target scans per hour, with an option for Portal Mode capable of screening up to 120 target scans per hour.
- Effective imaging. High-performance X-ray imaging provides 1 mm wire resolution in air and 4 mm horizontal and vertical spatial resolution.
- Material discrimination. 4-color minimum material separation helps distinguish between Organic, Inorganic, Light Metals and Heavy Metals.
Overview

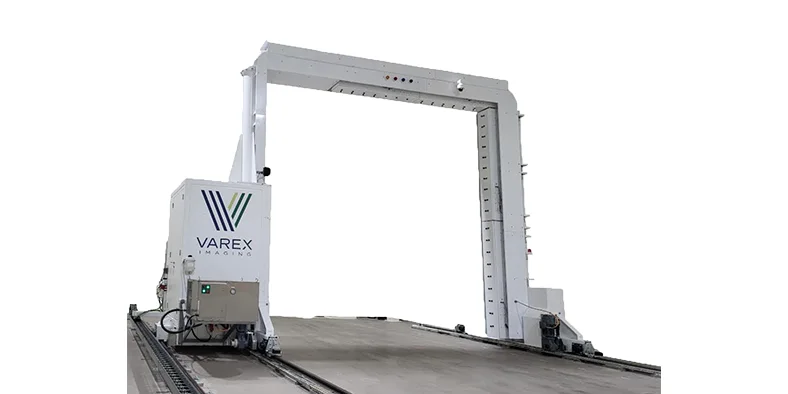

The VXG-6 is a gantry hi-energy, non-intrusive screening system designed to verify the contents of cargo carrying vehicles, ISO containers, large cargo and palletized goods and identify hidden contraband such as weapons, explosives and narcotics.
The system is mounted on rails and is designed to scan the whole vehicle, including the driver’s cabin. The vehicle driver leaves the vehicle and remains outside the Safety Exclusion Zone and VXG-6 System Building, providing a complete bumper-to-bumper inspection.
The VXG-6 is delivered, installed and commissioned with the equipment required to perform inspections at critical national infrastructure locations, particularly border crossings and sea or dry port environments.
Features
- Hi-energy X-ray inspection
- 330 mm steel penetration
- 5.4 m H × 3.8 m W scan object dimensions
- 5.5 m H × 5.6 m W system tunnel dimensions
- Rail-mounted gantry design
- Up to 25 target scans per hour
- Portal Mode option with up to 120 target scans per hour
- 4-color minimum material separation
- Optional bi-directional scanning capability
Imaging performance
The VXG-6 provides high-penetration X-ray imaging designed for comprehensive inspection of vehicles, ISO containers and large cargo.
- 330 mm steel penetration
- 1 mm wire resolution in air
- 4 mm horizontal / 4 mm vertical spatial resolution
- 1% contrast resolution behind 100 mm of steel
- 4-color minimum material separation: Organic, Inorganic, Light Metals and Heavy Metals
Technical specifications
| System Type | Gantry Scanner |
| Overall Dimensions | 27.0 m (L) × 8.5 m (W) × 6.25 m (H); option for 40.0 m rails |
| Scan Object Dimensions | 5.4 m (H) × 3.8 m (W) |
| System Tunnel Dimensions | 5.5 m (H) × 5.6 m (W) |
| Energy Source | Varex 6 / 4 MeV Mi6 SSM |
| Steel Penetration | 330 mm |
| Wire Resolution in Air | 1 mm |
| Spatial Resolution | 4 mm Horizontal / 4 mm Vertical |
| Contrast Resolution | 1% behind 100 mm Steel |
| Material Separation | 4 Color Minimum |
| Scanning Throughput | 25 Target Scans per hour |
| Portal Mode | Up to 120 Target Scans per hour |
| Set-up | 20 minutes in standard operating environment |
| Operating Temperature | -10°C to +40°C; optional cold weather package to -40°C and hot weather package to +55°C |
| Relative Humidity | 5% to 95% non-condensing |
| Maximum Baseline Wind Speed | 40 km/hour |
Applications
- Border Crossings
- Sea Ports
- Dry Ports
- Critical National Infrastructure
- Customs & Security Facilities
- Cargo Inspection Facilities
Safety
The VXG-6 meets recognized radiation safety standards, including ANSI 43.17, for radiation safety at operational sites. The system is designed for both shielded and unshielded Radiation Safety Exclusion Zones.
