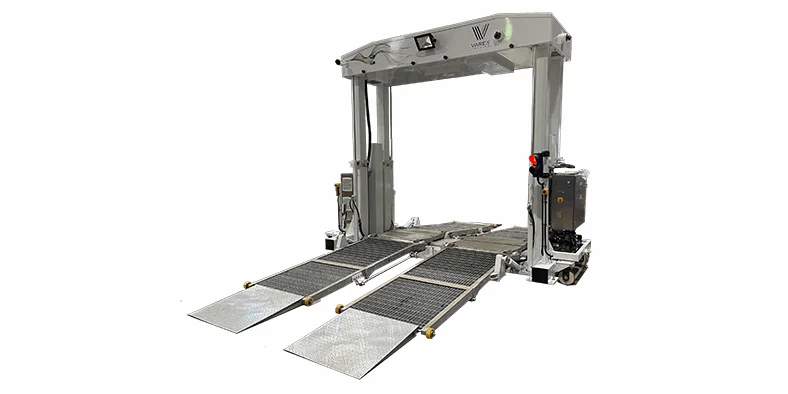

Small Vehicle Non-Intrusive X-Ray Inspection System
The VXC-300 is a low-energy, non-intrusive X-ray screening system designed for the inspection of cars, vans and small buses. Using a down-shooter configuration, it provides effective detection of security threats with reliable imaging and material separation capabilities.
Feature highlights
- High penetration. Provides steel penetration of up to 40 mm with 45 mm typical at 200 kV, and 55 mm with 60 mm typical at 250 kV.
- Effective imaging. Down-shooter X-ray imaging with a U-shaped array provides effective inspection and clear identification of potential security threats.
- Flexible deployment. Designed for permanent or semi-permanent deployment at points of entry, critical infrastructure, secure complexes, seaports and border crossings.
- Proven performance. Designed for efficient operation with a setup time of under 20 minutes and an operating team consisting of one System Operator / Image Analyst and one Grounds Marshall.
- Material separation. Provides 4-color minimum material separation for Organic, Inorganic, Light Metals and Heavy Metals.
Overview
The VXC-300 is a Small Vehicle Non-Intrusive Inspection System designed for scanning cars, vans and small buses. The system uses a Gulmay iFC 320 X-Ray Generator in Down Shooter Mode with a U-shaped array for effective vehicle inspection.
The system is designed for permanent or semi-permanent deployment at points of entry, critical national infrastructure, secure complexes, seaports and border crossings, providing non-intrusive inspection and material separation capabilities.
Features
- Down-shooter X-ray imaging
- 320 kV X-ray generator
- Designed for cars, vans and small buses
- One-direction scanning with optional bi-directional mode
- 4-color minimum material separation
- Up to 250 target scans per hour
- Optional conveyor with up to 60 scans per hour
- Setup in under 20 minutes
Imaging performance
The VXC-300 uses a Gulmay iFC 320 X-Ray Generator in Down Shooter Mode and provides effective non-intrusive inspection for small vehicles.
- Down Shooter X-ray configuration
- U-shaped array
- 4-color minimum material separation: Organic, Inorganic, Light Metals and Heavy Metals
- One-direction scanning
- Optional bi-directional mode
Technical specifications
| System Type | Drive Through Portal (Conveyor Optional) |
| Scan View | Down Shooter |
| X-Ray Generator | Gulmay iFC 320 X-Ray Generator |
| Mode | Down Shooter |
| Overall Dimensions (Conveyor variant) | 23.5 m (L) × 4.35 m (W) × 3.80 m (H) |
| Recommended Maximum Vehicle/Object | 2.5 m W × 2.7 m H × 7.0 m L |
| Steel Penetration (200 kV) | 40 mm with 45 mm typical |
| Steel Penetration (250 kV) | 55 mm with 60 mm typical |
| Material Separation | 4 Color Minimum: Organic, Inorganic, Light Metals and Heavy Metals |
| Scanning Direction | One direction; Optional Bi-directional Mode |
| Scanning Throughput | Up to 250 Target Scans per hour |
| Optional Conveyor Throughput | 60 scans per hour |
| Set-up Time | Under 20 minutes |
| Operating Team | 1 System Operator / Image Analyst + 1 Grounds Marshall |
| Operating Temperature | -10°C to +40°C; optional hot weather package to +55°C |
| Relative Humidity | 5% to 95% non-condensing |
| Maximum Baseline Wind Speed | 40 km/hour |
| ANSI N42.46 | Yes |
Applications
- Points of Entry
- Critical National Infrastructure
- Secure Complexes
- Seaports
- Border Crossings
- Hotels and Similar Complexes
Safety
The VXC-300 is designed for non-intrusive inspection of small vehicles. All tests are performed according to ANSI N42.46.
