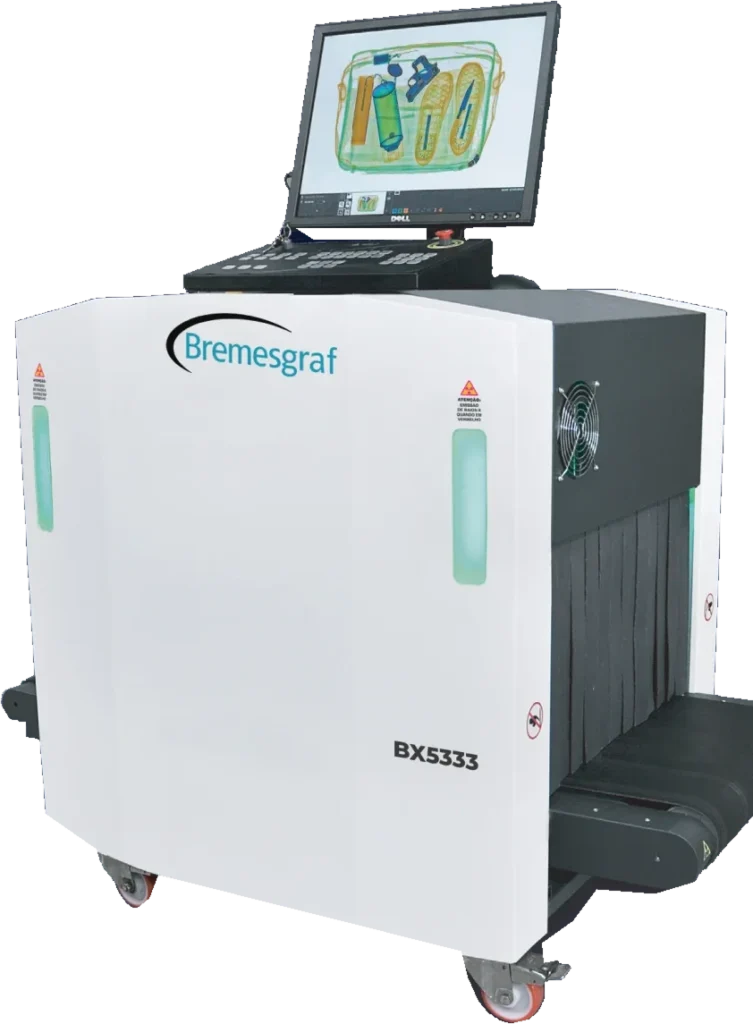

The BX5333 is one of the smallest equipment on the market with a compact table design, allowing inspection of small orders with great efficiency, precision and easy mobility. Ideal for mail storage centers, government and public buildings, banks and universities, among others.
Delivers clear and detailed X-ray images for accurate threat detection.
Built for continuous operation with high efficiency and low maintenance.
Specification
| Dimensions | 1192 (L)/ 802 (W)/ 879,7 (H) [mm] 46.9” (L)/ 31.6” (W)/ 34.6” (H) |
| Weight | 290kg | 639.3lbs |
| Operating temperature and humidity | 0°C to 40°C / 5% to 95% (non-condensing) |
| Storage temperature and humidity | -40°C to 60°C / 5% to 95% (non-condensing) |
| Power supply | 110 - 127VAC / 208 - 220VAC (-15% to +10%); 50Hz/60Hz, +/-3Hz |
| Power | 500VA |
| Tunnel dimensions | 530mm (W) / 331mm (H) 20.9” (W)/13” (H) |
| Conveyor speed | 0,22m/s |
| Conveyor height | 230mm | 9.0” |
| Maximum load on the conveyor | 60kg | 132.3lbs |
| Standard generator | 110kV (configurable) |
| Wire resolution* | 40AWG |
| Steel penetration* | 16mm | 0.6” |
| Monitor | High resolution, configurable size |
| Cooling | Insulating oil |
| Beam orientation | Diagonally downward |
Standard functions
- Automatic discrimination of organic, inorganic and mixed materials by colorization
- Automatic image saving
- Baggage counter
- Continuous scanning
- Zoom higher than 128x
- Color or black / white image
- Edge highlight
- High penetration function
- Sharpness
- TIP threat image projection
- High density alert
- JPG, TIFF, BMP
- Network connection
- Real-time scanning
- Self-diagnosis system
- Color inversion
- Real-time image manipulation
- Automatic detection algorithm for drugs, explosives and high density materials
- Storage capacity over 200,000 images
Optional functions and accessories
- Customized painting
- Training software
- Local language
- Remote workstation
- ASTM standard test kit
- Modular roller table
- Lockable anti theft console with key
- Remote management software for multiple devices
- Elevating base
- Camera
- Tunnel protection extension
- UPS
- Ability to integrate with conveyor system
- WiFi capability
- Integration with Garrett’s walk-through metal detector portals
- ONVIF compatibility
- Touch screen Monitor
Safety
- Shielding: Dose below than 1µSv / h at 0.1m away from the equipament
