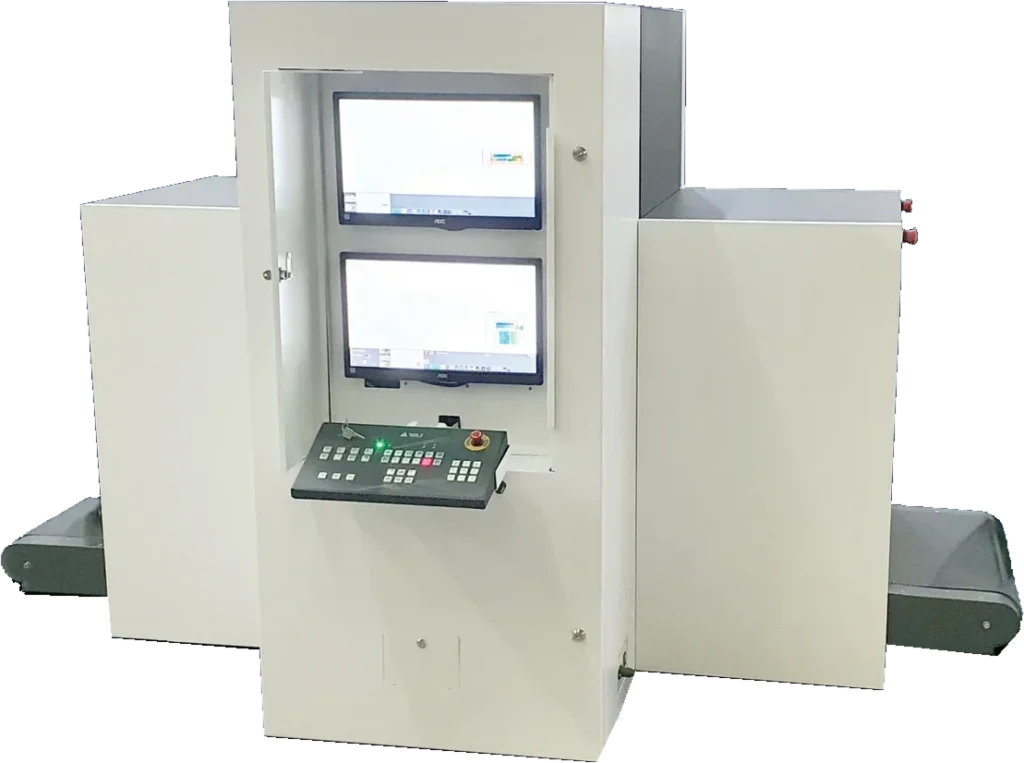

BX6575 – Bremesgraf Ltd – Security, Biometrics & Aviation Solutions

BX6575 forms part of the Bremesgraf baggage & parcel inspection portfolio.

Specification

Dimensions	2550 (L)/1357 (W)/1761 (H) [mm] 88.5” (L)/53.4” (W)/69.3” (H)
Weight	930kg \| 2050.3lbs
Operating temperature and humidity	0°C to 40°C / 5% to 95% (non-condensing)
Storage temperature and humidity	-40°C to 60°C / 5% to 95% (non-condensing)
Power supply	110 - 127VAC / 208 - 240VAC (-15% to +10%); 50Hz/60Hz, +/-3Hz
Power	740VA
Tunnel dimensions	670 (W)/776 (H) [mm] 26.3” (W)/30.5” (H)
Conveyor speed	0,22m/s
Conveyor height	290mm \| 11.4“
Maximum load on the conveyor	200kg \| 440.9lbs
Standard generator	160kV operating at 150 kV
High power generator	170kV operating at 160 kV
Wire resolution*	40AWG
Steel penetration*	42mm \| 1.6” (150kV) 44mm \| 1.7” (170kV)
Monitor	High resolution, configurable size
Cooling	Insulating oil
Beam orientation	Diagonal sideward

Automatic discrimination of organic, inorganic and mixed materials by colorization
Automatic image saving
Baggage counter
Continuous scanning
Zoom higher than 128x
Color or black / white image
Edge highlight
High penetration function
Sharpness
TIP threat image projection
High density alert
JPG, TIFF, BMP
Network connection
Real-time scanning
Self-diagnosis system
Color inversion
Real-time image manipulation
Automatic detection algorithm for drugs, explosives and high density materials
Storage capacity over 200,000 images
