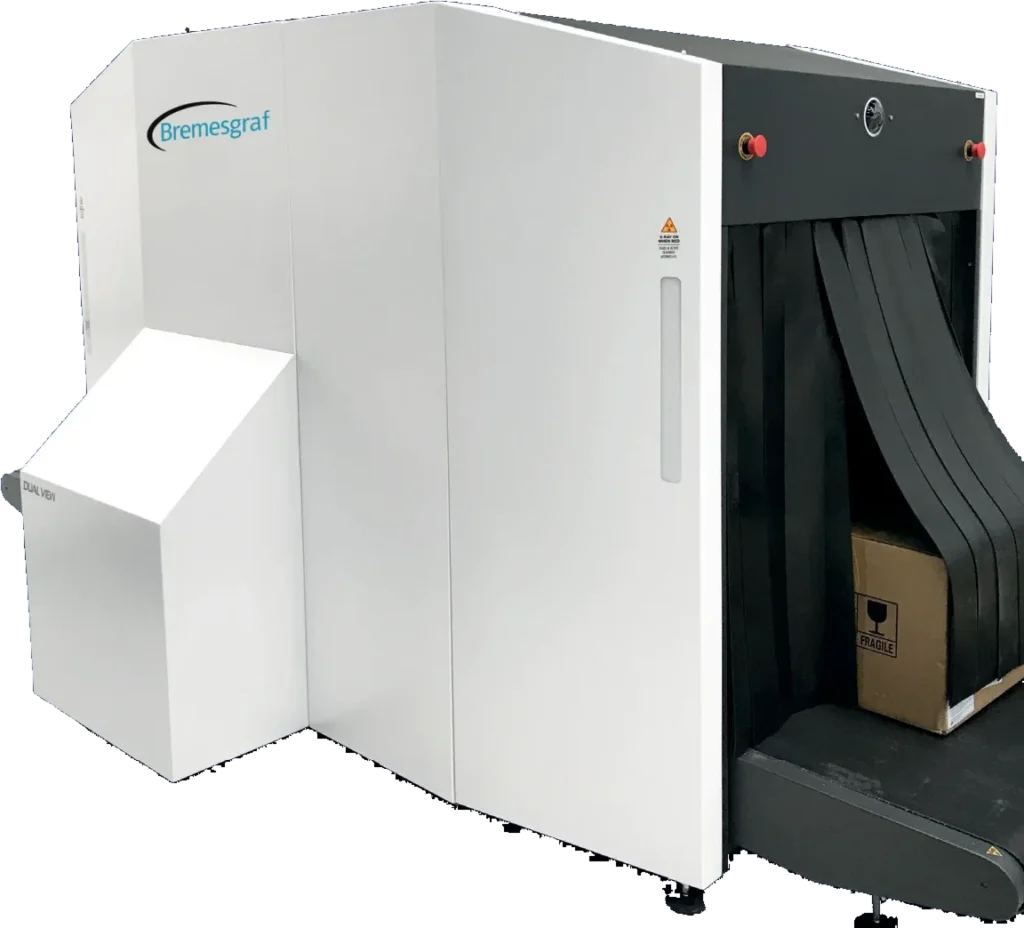

The BX100100 DV has high image quality and is certified by international airports. Specifically designed to meet the needs and applications of airports, prisons, customs facilities, transport operations, carriers, parcel services, it uses high power X-ray generators, achieving an excellent level of penetration and high image quality, offering a quick inspection and effective.
Delivers clear and detailed X-ray images for accurate threat detection.
Built for continuous operation with high efficiency and low maintenance.
Specification
| Dimensions | 3624 (L)/1708 (W)/1757 (H) [mm] 142.7” (L)/67.2” (W)/69.2” (H) |
| Approximate weight | 1350 kg / 2976.2 lbs |
| Operating temperature and humidity | 0°C to 40°C / 5% to 95% (non-condensing) |
| Storage temperature and humidity | -40°C to 60°C / 5% to 95% (non-condensing) |
| Power supply | 110 - 127 VAC / 208 - 240 VAC (-15% to +10%); 50 Hz/60 Hz, +/-3 Hz |
| Power | 1070 VA |
| Tunnel dimensions | 1010 mm (W)/1005 mm (H) 39.76” (W)/39.57” (H) |
| Conveyor speed | 0,22 m/s (adjustable) |
| Conveyor height | 317 mm | 12.48“ (adjustable) |
| Maximum load on the conveyor | 200 kg | 440.9 lbs |
| Standard generator | 160 kV operating at 150 kV |
| High power generator | 170 kV operating at 160 kV |
| Wire resolution* | 40 AWG |
| Steel penetration* | 36 mm | 1.4” (150 kV) 38 mm | 1.5” (170 kV) |
| Monitor | High resolution, configurable size |
| Cooling | Insulating oil |
| Beam orientation | Diagonal upward and sideward |
Standard functions
- Automatic discrimination of organic, inorganic and mixed materials by colorization
- Automatic image saving
- Baggage counter
- Continuous scanning
- Zoom higher than 128x
- Color or black / white image
- Edge highlight
- High penetration function
- Sharpness
- TIP threat image projection
- High density alert
- JPG, TIFF, BMP
- Network connection
- Real-time scanning
- Self-diagnosis system
- Color inversion
- Real-time image manipulation
- Automatic detection algorithm for drugs, explosives and high density materials
- Storage capacity over 200,000 images
Optional functions and accessories
- Customized painting
- Training software
- Local language
- Remote workstation
- ASTM standard test kit
- Modular roller table
- Lockable anti theft console with key
- Remote management software for multiple devices
- Camera
- Tunnel protection extension
- UPS
- Ability to integrate with conveyor system
- WiFi capability
- Integration with Garrett’s walk-through metal detector portals
- ONVIF compatibility
Safety
- Shielding: Dose below than 1 µSv / h at 0.1 m away from the equipament
