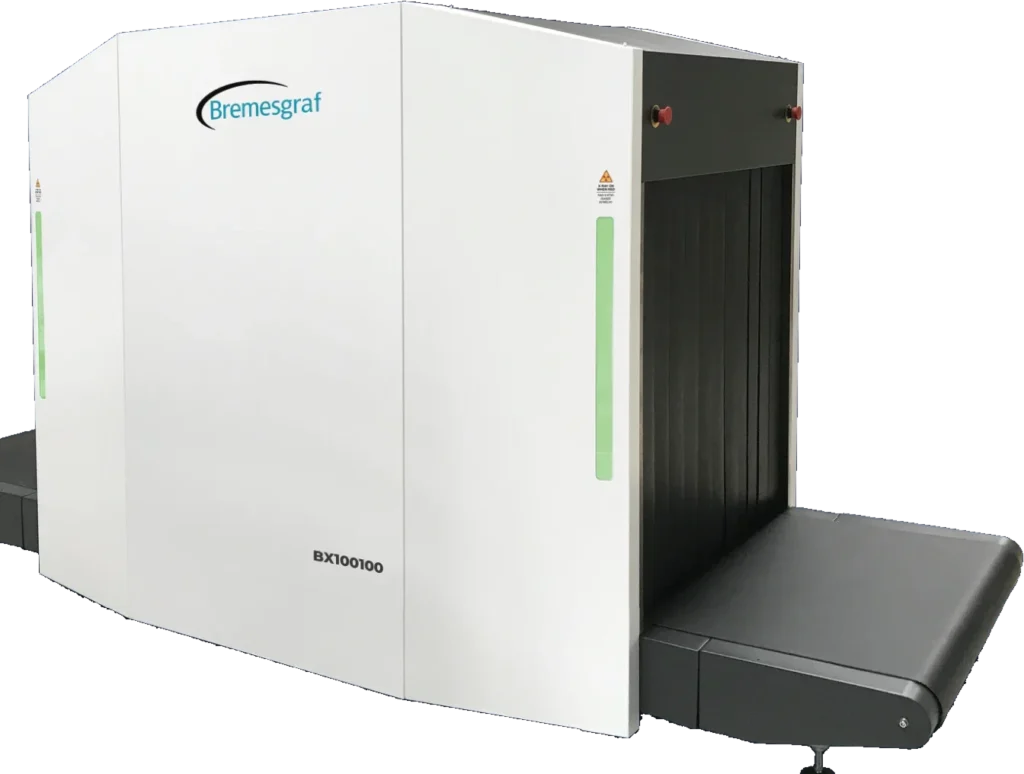

The BX100100 has a modern design and high image quality, being certified by international airports. The BX100100 is designed to meet the needs and applications of airports, prisons, customs facilities, transportation operations, carriers, parcel services or wherever high security and total screening of a wide range of cargo dimensions is required.
Delivers clear and detailed X-ray images for accurate threat detection.
Built for continuous operation with high efficiency and low maintenance.
Specification
| Dimensions | 3624 (L) / 1366 (W)/ 1757 (H) [mm] 142.7” (L) / 53.8” (W)/ 69.2” (H) |
| Approximate weight | 1037 kg | 2286.2 lbs |
| Operating temperature and humidity | 0°C to 40°C / 5% to 95% (non-condensing) |
| Storage temperature and humidity | -40°C to 60°C / 5% to 95% (non-condensing) |
| Power supply | 110 - 127 VAC / 208 - 240 VAC (-15% to +10%); 50 Hz/60 Hz, +/-3 Hz |
| Power | 760 VA |
| Tunnel dimensions | 1010 mm (W)/1005 mm (H) 39.76” (W)/39.57” (H) |
| Conveyor speed | 0,22 m/s (adjustable) |
| Conveyor height | 317 mm | 12.48“ |
| Maximum load on the conveyor | 200 kg | 440.9 lbs |
| Standard generator | 160 kV operating at 150 kV |
| High power generator | 170 kV operating at 160 kV |
| Wire resolution* | 36 AWG |
| Steel penetration* | 36 mm | 1.4” (150 kV) 38 mm | 1.5” (170 kV) |
| Monitor | High resolution, configurable size |
| Cooling | Insulating oil |
| Beam orientation | Diagonal downward |
Standard functions
- Automatic discrimination of organic, inorganic and mixed materials by colorization
- Automatic image saving
- Baggage counter
- Continuous scanning
- Zoom higher than 128x
- Color or black / white image
- Edge highlight
- High penetration function
- Sharpness
- TIP threat image projection
- High density alert
- JPG, TIFF, BMP
- Network connection
- Real-time scanning
- Self-diagnosis system
- Color inversion
- Real-time image manipulation
- Automatic detection algorithm for drugs, explosives and high density materials
- Storage capacity over 200,000 images
Optional functions and accessories
- Customized painting
- Training software
- Local language
- Remote workstation
- ASTM standard test kit
- Modular roller table
- Lockable anti theft console with key
- Remote management software for multiple devices
- Camera
- Tunnel protection extension
- UPS
- Ability to integrate with conveyor system
- WiFi capability
- Integration with Garrett’s walk-through metal detector portals
- ONVIF compatibility
Safety
- Shielding: Dose below than 1 µSv / h at 0.1 m away from the equipament
