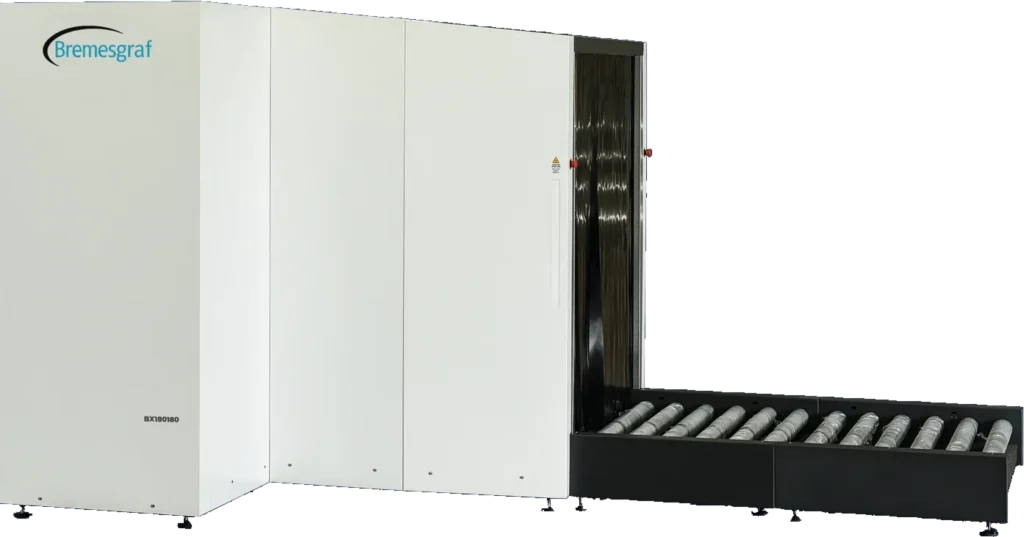

The BX180180 is an X-ray inspection system with high level of performance, greater clarity and image quality. It was specially designed for meet the needs and applications of airports, customs services, transportation services, carriers, transport operations or any other environment where high security requires thorough screening. The 200KV generator allows accurate identification of load contents in a single pass.
Delivers clear and detailed X-ray images for accurate threat detection.
Built for continuous operation with high efficiency and low maintenance.
Specification
| Dimensions | 8040 (L) / 3197 (W) / 2402 (H) [mm] 316.5” (L) / 125.9” (W) / 94.6” (H) |
| Weight | 5000Kg | 11023.11lbs(approximately) |
| Operating temperature and humidity | 0°C to 40°C / 5% to 95% (non-condensing) |
| Storage temperature and humidity | -40°C to 60°C / 5% to 95% (non-condensing) |
| Power supply | 220VAC (-15% a +10%); 50Hz/60Hz, +/-3Hz |
| Power | 2200VA |
| Tunnel dimensions | 1820mm (W)/1802mm (H) 71.6” (W)/70.9” (H) |
| Conveyor speed | 0,22m/s (adjustable) |
| Conveyor height | 389mm | 15.3″ |
| Maximum load on the conveyor | 3000kg | 6613.9lbs |
| Standard generator | 200kV (configurable) |
| Wire resolution* | 36AWG |
| Steel penetration* | 49mm | 1.9” |
| Monitor | High resolution, configurable size |
| Cooling | Insulating oil with forced air cooling |
| Beam orientation | Sideward |
Standard functions
- Automatic discrimination of organic, inorganic and mixed materials by colorization
- Automatic image saving
- Baggage counter
- Continuous scanning
- Zoom higher than 128x
- Color or black / white image
- Edge highlight
- High penetration function
- Sharpness
- TIP threat image projection
- High density alert
- JPG, TIFF, BMP
- Network connection
- Real-time scanning
- Self-diagnosis system
- Color inversion
- Real-time image manipulation
- Automatic detection algorithm for drugs, explosives and high density materials
- Storage capacity over 60,000 images
Optional functions and accessories
- Customized painting
- Training software
- Local language
- Remote workstation
- Lockable anti theft console with key
- Remote management software for multiple devices
- Camera
- UPS
- Ability to integrate with conveyor system
- WiFi capability
- ONVIF compatibility
- Modular roller table
Safety
- Shielding: Dose below than 1µSv / h at 0.1m away from the equipament
