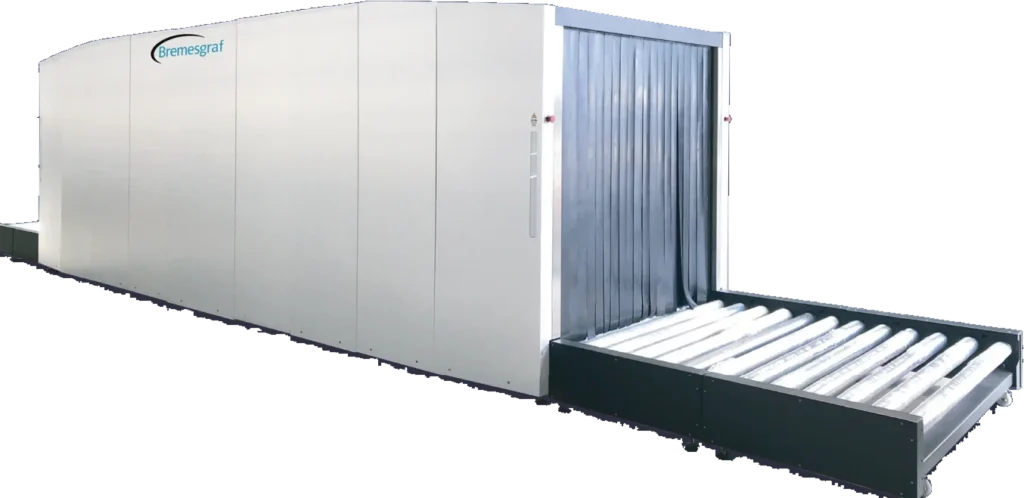

The BX180180 (320 kV) is an X-ray inspection system with high level of performance, greater clarity and image quality. It was specially designed for meet the needs and applications of airports, customs services, transportation services, carriers, transport operations or any other environment where high security requires thorough screening. The technology with the 320 kV generators, allows accurate identification of load contents in a single pass.
Delivers clear and detailed X-ray images for accurate threat detection.
Built for continuous operation with high efficiency and low maintenance.
Specification
| Dimensions | 9865 (L) / 3197 (W) / 2424 (H) [mm] 388.4” (L) / 125.9” (W) / 95.4” (H) ) |
| Approximate weight | 9010 Kg | 19863.6 lbs |
| Operating temperature and humidity | 0°C to 40°C / 5% to 95% (non-condensing) |
| Storage temperature and humidity | -40°C to 60°C / 5% to 95% (non-condensing) |
| Power supply | 220 VAC (-15% a +10%); 50 Hz/60 Hz, +/-3 Hz |
| Power | 3500 VA |
| Tunnel dimensions | 1838 mm (W)/1822 mm (H) 72.36”(W) / 71.73” (H) |
| Conveyor speed | 0,22 m/s (adjustable) |
| Conveyor height | 355 mm | 13.98“ |
| Maximum load on the conveyor | 3000 kg | 6613.9 lbs |
| Standard generator | 320 kV (configurable) |
| Wire resolution* | 36 AWG |
| Steel penetration* | 70 mm | 2,75” |
| Monitor | High resolution, configurable size |
| Cooling | Insulating oil with forced air cooling |
| Beam orientation | Sideward |
Standard functions
- Automatic discrimination of organic, inorganic and mixed materials by colorization
- Automatic image saving
- Baggage counter
- Continuous scanning
- Zoom higher than 128x
- Color or black / white image
- Edge highlight
- High penetration function
- Sharpness
- TIP threat image projection
- High density alert
- JPG, TIFF, BMP
- Network connection
- Real-time scanning
- Self-diagnosis system
- Color inversion
- Real-time image manipulation
- Automatic detection algorithm for drugs, explosives and high density materials
- Storage capacity over 60,000 images
Optional functions and accessories
- Customized painting
- Training software
- Local language
- Remote workstation
- Lockable anti theft console with key
- Remote management software for multiple devices
- Camera
- UPS
- Ability to integrate with conveyor system
- WiFi capability
- ONVIF compatibility
- Modular roller table
Safety
- Shielding: Dose below than 1 µSv / h at 0.1 m away from the equipament
